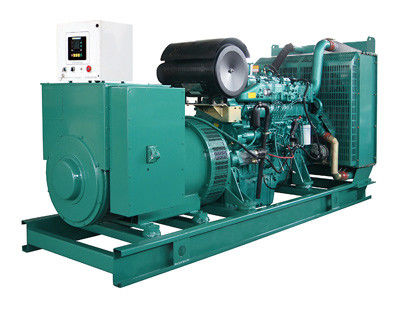

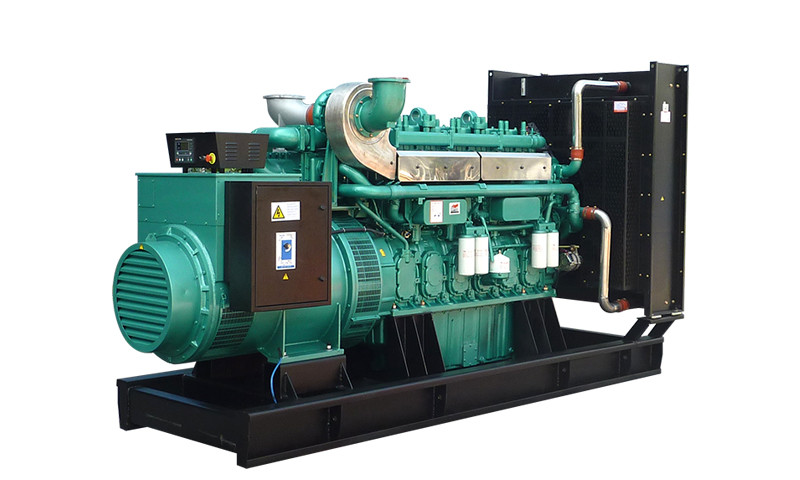

Rated Power 450-3000kWe Yuchai Diesel Generator Set Base Type Oil Tank Land Power Station
1. Reliable power quality: The diesel generator set produced by our company is a well-known Chinese brand Yuchai engine (YUCHAI). Introduction to Yuchai Engine: Yuchai Company was officially established in 1951. Yuchai is the pioneer of domestic engines in China, with a power range of 20-3600 horsepower, widely used in construction machinery, mining machinery, agricultural machinery, ships, and oil and gas fields.
2. Reliable generator quality: The diesel generators produced by our company are equipped with generators with reliable quality and high market holdings, such as ① Stamford generator (STAMFORD) ② Mecc alte generator (mecc alte)
3. The control system has high precision: the diesel generator set control system produced by our company uses the LCD screen controller,
Such as: ① deep sea controller (DSE) ② smartgen controller (smartgen)
4. Wide power coverage: The power of diesel generator sets produced by our company covers 20-1200kWe, which can meet various electricity needs of users.
5. The unit has low capacity loss and low oil consumption to meet the industrial power demand
6. All aspects of generator set design, manufacturing and service have been brought together in one company. All the major components – the engine, alternator, control systems and containers – are manufactured and built by our. This integrated approach means each element of a generator set is matched to work in harmony from the start.
7. The production of Huide Power generator sets is located in Gangyang Industrial Park. The company covers an area of 10000 square meters and is equipped with advanced product research and development and testing equipment
| Gen-set Specifications | |||
| Gen-set Model | HD-(450-3000)GF | Rated Frequency | 50Hz/60Hz |
| Rated Power | 450-3000kWe | Rated Speed | 1500rpm/1800rpm |
| Standby Power | 495-3300kWe | Rated Current | 810-5400A(400V) |
| Rated Voltage | 400/440V | Weight | 4300-25000kg |
| Fuel Consumption(Rated) | 195-210g/kW•h | Outline Dimension(L×W×H) | 3600×1500×1850mm- |
| Engine Technical Datasheet | |||
| Engine series | YC6TD/6TH/6C/12VC | Brand | Yuchai |
| Rated Power | 520-3300kW | Number of Cylinders | 6/12/16 |
| Starting method | DC24V | Governor | Electronic control(ECU) |
| Displacement | 19.6-105.56Liters | Lubricant Capacity | 55-430L |
| Alternator Technical Datasheet | |||
| Rated Power | 450-3000kWe | Brand | Stanford |
| Type | 3phase 4wire | Protection Grade | IP23 |
| Voltage regulation | AVR | Excitation | brushless PMG |
| Insulation Grade | H | ||
| Control system Technical Datasheet |
1,Multi-interface display unit work and alarm state, intuitively clear, LCD displays the parameters of diesel engines. 2,Microcomputer can be set on the control panel input, output, alarm, delay and other 3,parameters.Maintenance, manual, automatic and other modes of operation. 1,Engine Data: Speed, Oil Pressure, Water Temperature, Battery Volt, Running TimingAlternator 2,Data: Gen-set/Mains Frequency, Gen-set/Mains 3-Phase Volt(L-L,L-N) ,Current, kVA,kW,PF,kVAR,kWh,kVAh,kVARh 1,Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt,Low water level,Three failed to start alarm 2,Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit |
