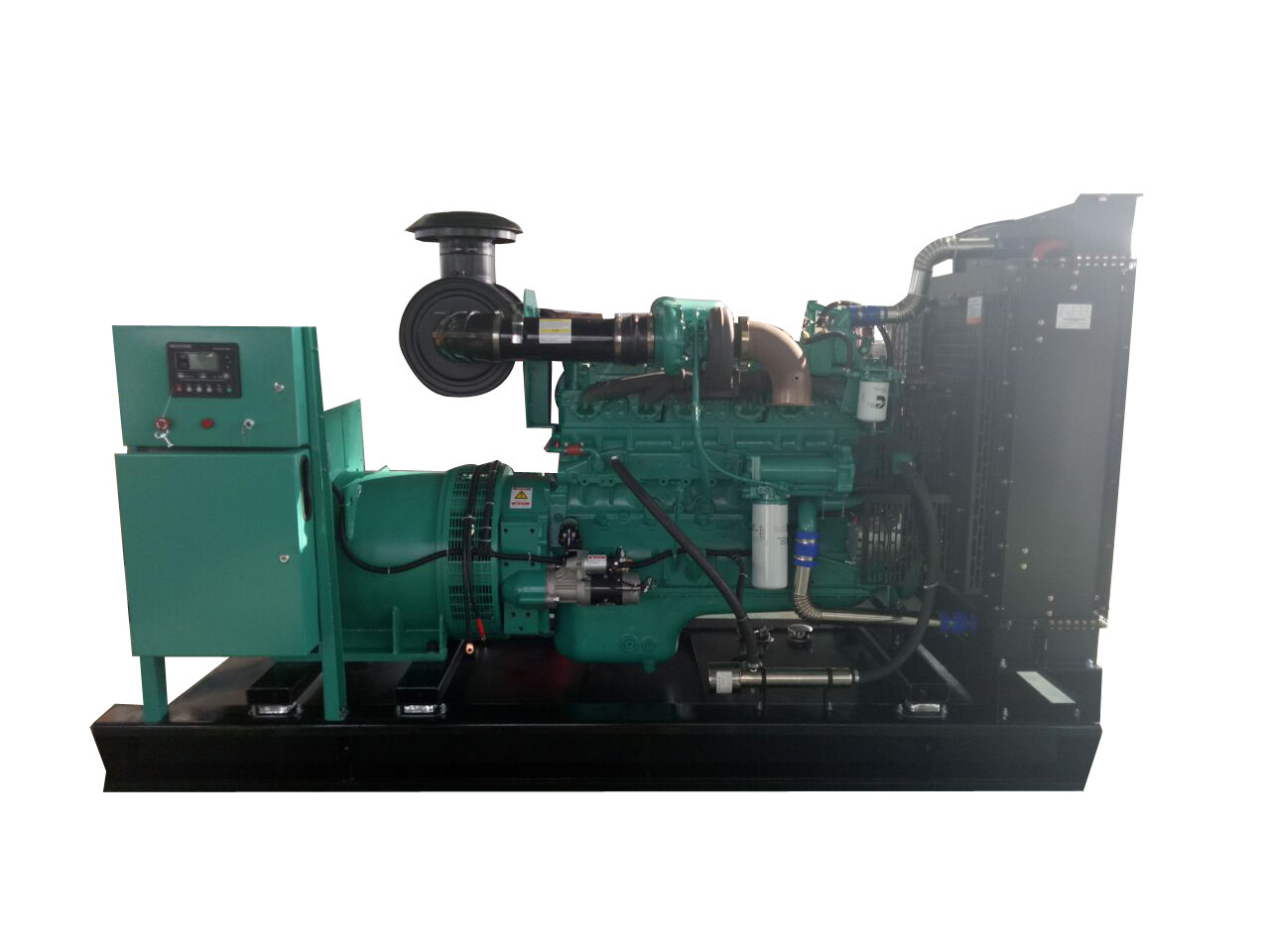

Standby Power 250kVA Cummins Diesel Generator Set Base Type Oil Tank Land Power Station
1. Reliable power quality: The diesel generator set produced by our company uses the world-renowned brand Cummins engine (CUMMINS). Introduction to Cummins Engine: Cummins Engine Company was formally established in the United States in 1919. After more than 100 years of accumulation, Cummins is the world's leading manufacturer of power equipment, with a power range of 31~3500 horsepower, widely used in construction machinery, mining machinery, agricultural machinery , ships, oil and gas fields.
2. Reliable generator quality: The diesel generators produced by our company are equipped with generators with reliable quality and high market holdings, such as Stamford generator (STAMFORD) ② Mecc alte generator (mecc alte)
3. The control system has high precision: the diesel generator set control system produced by our company uses the LCD screen controller,Such as: ① deep sea controller (DSE) ② smartgen controller (smartgen)
4. Wide power coverage: The power of diesel generator sets produced by our company covers 20-1200kWe, which can meet various electricity needs of users.
5. It is currently widely used in national defense, communications, and petroleum. , medical, plateau, railway, field rescue, agriculture and animal husbandry and other fields
6. Regardless of the power system architecture required to meet your market or application needs Cummins provides a superior combination of solution design expertise, integrated equipment and communication software as well as ongoing operation and generator maintenance services to help you maintain a resilient operation at your site
| Gen-set Specifications | |||
| Gen-set Model | HD-200GF | Rated Frequency | 50Hz/60Hz |
| Rated Power | NA | Rated Speed | 1500rpm/1800rpm |
| Standby Power | 200kWe/250kVA | Rated Current | 327A(400V) |
| Rated Voltage | 400/440V | Weight | 1600kg |
| Fuel Consumption(Rated) | 210g/kW•h |
Outline Dimension(L×W×H) |
2500×860×1450mm |
| Engine Technical Datasheet | |||
| Engine Model | 6CTAA8.3-G9 | Brand | DCEC Cummins |
| StandbyPower | 231kW | Number of Cylinders | 6 |
| Bore×Stroke | 114mm×135mm | Governor | Electronic |
| Displacement | 8.3Liters | Lubricant Capacity | 28L |
| Starting method | DC24V | ||
| Alternator Technical Datasheet | |||
| Alternator Model | UCDI274K | Brand | Stamford |
| Rated Power | 200kW | Protection Grade | IP23 |
| Voltage regulation | AVR | Excitation | brushless PMG |
| Insulation Grade | H | Type | 3phase 4wire |
| Control system Technical Datasheet |
|
1,Multi-interface display unit work and alarm state, intuitively clear, LCD displays the parameters of diesel engines. 2,Microcomputer can be set on the control panel input, output, alarm, delay and other 3,parameters.Maintenance, manual, automatic and other modes of operation. 1,Engine Data: Speed, Oil Pressure, Water Temperature, Battery Volt, Running TimingAlternator 2,Data: Gen-set/Mains Frequency, Gen-set/Mains 3-Phase Volt(L-L,L-N) ,Current, kVA,kW,PF,kVAR,kWh,kVAh,kVARh 1,Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt,Low water level,Three failed to start alarm 2,Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit |
