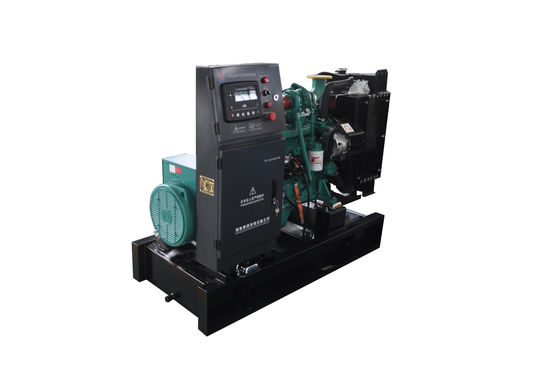

50kVA Cummins Diesel Generator Set H Insulation High Integration

Email reply
50kVA Cummins Diesel Generator Set H Insulation High Integration
Features Gallery Product Description Request A Quote
Style: Open-shelf
Color: Black
Rated Power: 50kVA
Rated Frequenc: 50Hz Or 60HZ
Rated Speed: 1500rpm Or 1800rpm
Rated Voltage: 400V Or 440V
Starting Method: DC24V Ekectric Start
Brand: Cummins
High Light:

50kVA Cummins Diesel Generator Set


50kVA Diesel Generator Set


H Insulation Cummins Diesel Generator Set

Basic Infomation
Place of Origin: Taizhou City,Jiangsu Province,China
Brand Name: Cummins
Certification: ISO9001
Model Number: HD-40GF
Payment & Shipping Terms
Packaging Details: Rainproof packaging
Delivery Time: 10-25 days
Payment Terms: LC,TTB
Supply Ability: hundred
Product Description

    Rated Power 50kVA Cummins Diesel Generator Set Base Type Oil Tank Land Power Station
1.  Reliable power quality: The diesel generator set produced by our company uses the world-renowned brand Cummins engine (CUMMINS). Introduction to Cummins Engine: Cummins Engine Company was formally established in the United States in 1919. After more than 100 years of accumulation, Cummins is the world's leading manufacturer of power equipment, with a power range of 31~3500 horsepower, widely used in construction machinery, mining machinery, agricultural machinery , ships, oil and gas fields.
2.  Reliable generator quality: The diesel generators produced by our company are equipped with generators with reliable quality and high market holdings, such as ① Stamford generator (STAMFORD) ② Mecc alte generator (mecc alte) ③ Marathon power generation Generators with excellent performance such as marathon.
3.  The control system has high precision: the diesel generator set control system produced by our company uses the LCD screen controller,Such as: ① deep sea controller (DSE) ② smartgen controller (smartgen) has the characteristics of high integration and high management accuracy.
4.  Huide can produce more than 10,000 generator sets of various types annually, and the unit power ranges from 2 to 8700kW
5.  generator-drive engines, battery storage systems and integrated power systems that combine generator sets, paralleling controls and switchgear technologies, all connected to our industry-leading digital solutions for complete power system control
6.  Optional Permanent Magnet Generator (PMG) - Offers enhanced motor starting and fault clearing short circuit capability. Alternator - Low reactance 2/3 pitch windings; low waveform distortion with non-linear loads, fault clearing short-circuits capability, and class H insulation.

 Gen-set Specifications
Gen-set Model HD-40GF Rated Frequency 50Hz/60Hz
Rated Power  40kWe/50kVA Rated Speed 1500rpm/1800rpm
Standby Power 44kWe/55kVA Rated Current 72A
Rated Voltage 400/440V Weight 680kg
Fuel Consumption(Rated) 220g/kW•h

Outline Dimension(L×W×H)

 Engine Technical Datasheet
Engine Model 4BT3.9-G2 Brand DCEC Cummins
Rated Power 50kW Number of Cylinders 4
Bore×Stroke 102mm×120mm Governor Electronic
Displacement 3.9 Liters Lubricant Capacity 11L
Starting method DC24V
Alternator Technical Datasheet
Alternator Model S1L2-R1 Brand Stamford
Rated Power  40kW Protection Grade IP23
Voltage regulation AVR Excitation brushless PMG
Insulation Grade H Type  3phase 4wire
Control system Technical Datasheet

1,Multi-interface display unit work and alarm state, intuitively clear, LCD displays the parameters of diesel engines.

2,Microcomputer can be set on the control panel input, output, alarm, delay and other

3,parameters.Maintenance, manual, automatic and other modes of operation.
Display Data

1,Engine Data: Speed, Oil Pressure, Water Temperature, Battery Volt, Running TimingAlternator

2,Data: Gen-set/Mains Frequency, Gen-set/Mains 3-Phase Volt(L-L,L-N) ,Current, kVA,kW,PF,kVAR,kWh,kVAh,kVARh
Detection and protection function

1,Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt,Low water level,Three failed to start alarm

2,Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit

50kVA Cummins Diesel Generator Set H Insulation High Integration 050kVA Cummins Diesel Generator Set H Insulation High Integration 1
Factory reserve
50kVA Cummins Diesel Generator Set H Insulation High Integration 250kVA Cummins Diesel Generator Set H Insulation High Integration 3
