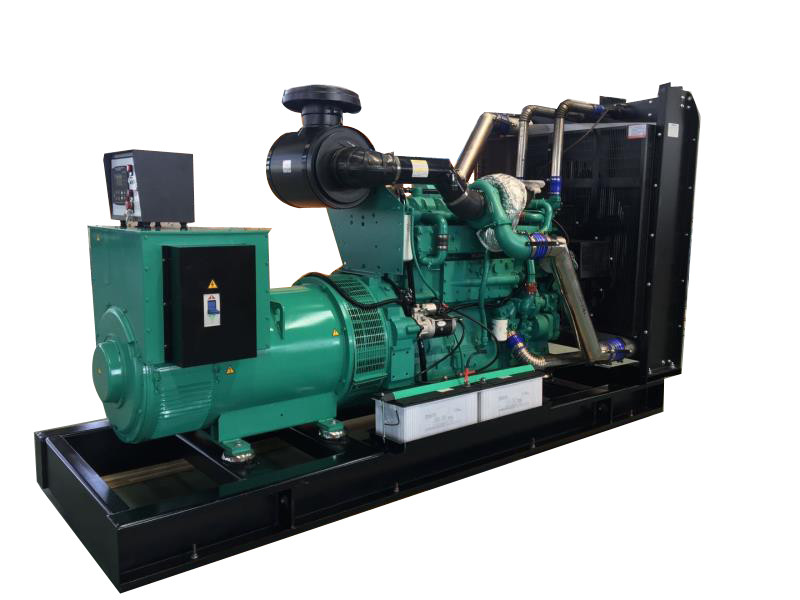

Rated Power 500kVA Cummins Diesel Generator Set Base Type Oil Tank Land Power Station
1. Reliable power quality: The diesel generator set produced by our company uses the world-renowned brand Cummins engine (CUMMINS). Introduction to Cummins Engine: Cummins Engine Company was formally established in the United States in 1919. After more than 100 years of accumulation, Cummins is the world's leading manufacturer of power equipment, with a power range of 31~3500 horsepower, widely used in construction machinery, mining machinery, agricultural machinery , ships, oil and gas fields.
2. Reliable generator quality: The diesel generators produced by our company are equipped with generators with reliable quality and high market holdings, such as ① Stamford generator (STAMFORD) ② Mecc alte generator (mecc alte) ③ Marathon power generation Generators with excellent performance such as marathon.
3. The control system has high precision: the diesel generator set control system produced by our company uses the LCD screen controller,Such as: ① deep sea controller (DSE) ② smartgen controller (smartgen) has the characteristics of high integration and high management accuracy.
4. Free solution before purchasing,customize project solutions for you free of charge.
5. Diesel generator sets are widely used in high-rise office buildings, hotels, hospitals, industrial and mining, rural areas, field operations in mountainous areas, power and lighting for enterprises, institutions, schools or professional households.
6. The main components are from American technology with reliable quality
7. Large matching coefficient of unit power and long engine life
8. Supporting professional high-temperature radiator
9. Advanced unit integration system, supporting manual mode and automatic mode
10. The unit has low capacity loss and low oil consumption to meet the industrial power demand
11. This Cummins commercial generator set is a fully integrated power generation system, providing optimum performance, reliability, and versatility for stationary Standby and Prime Power.Cummins heavy-duty engine - Rugged 4-cycle industrial diesel delivers reliable power, low emissions, and fast response to load changes.
| Gen-set Specifications | |||
| Gen-set Model | HD-400GF | Rated Frequency | 50Hz/60Hz |
| Rated Power | 400kWe/500kVA | Rated Speed | 1500rpm/1800rpm |
| Standby Power | 440kWe/550kVA | Rated Current | 720A(400V) |
| Rated Voltage | 400/440V | Weight | 3200kg |
| Fuel Consumption(Rated) | 211g/kW•h | Outline Dimension(L×W×H) | 3500×1360×1950mm |
| Engine Technical Datasheet | |||
| Engine Model | KTA19-G4 | Brand | CCEC Cummins |
| Rated Power | 448kW | Number of Cylinders | 6 |
| Bore×Stroke | 159mm×159mm | Governor | Electronic |
| Displacement | 19Liters | Lubricant Capacity | 50L |
| Starting method | DC24V | ||
| Alternator Technical Datasheet | |||
| Alternator Model | HCI544C | Brand | Stamford |
| Rated Power | 400kW/500kVA | Protection Grade | IP23 |
| Voltage regulation | AVR | Excitation | brushless PMG |
| Insulation Grade | H | Type | 3phase 4wire |
| Control system Technical Datasheet |
1,Multi-interface display unit work and alarm state, intuitively clear, LCD displays the parameters of diesel engines. 2,Microcomputer can be set on the control panel input, output, alarm, delay and other 3,parameters.Maintenance, manual, automatic and other modes of operation. 1,Engine Data: Speed, Oil Pressure, Water Temperature, Battery Volt, Running TimingAlternator 2,Data: Gen-set/Mains Frequency, Gen-set/Mains 3-Phase Volt(L-L,L-N) ,Current, kVA,kW,PF,kVAR,kWh,kVAh,kVARh 1,Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt,Low water level,Three failed to start alarm 2,Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit |
