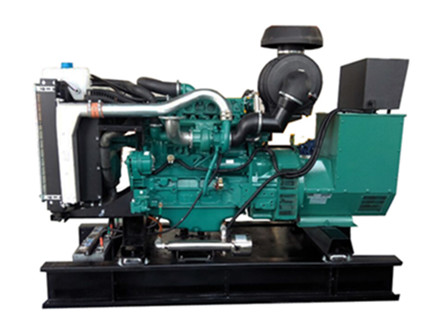

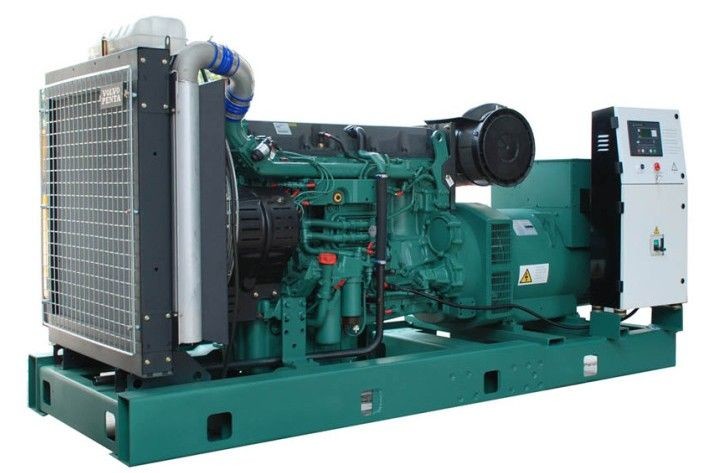

Rated Power 250-500kWe Volvo Diesel Generator Set Base Type Oil Tank Land Power Station
1. Reliable power quality: The diesel generator set produced by our company uses the world-renowned brand Volvo engine (VOLVO). Brief introduction of Volvo engine: Volvo company was formally established in 1927. After more than 90 years of accumulation, the power range covers 98~800 horsepower. It is widely used in construction machinery, mining machinery, agricultural machinery, ships, and oil and gas fields.
2. Reliable generator quality: The diesel generators produced by our company are equipped with generators with reliable quality and high market holdings, such as ① Stamford generator (STAMFORD) ② Mecc alte generator (mecc alte) ③ Marathon power generation Generators with excellent performance such as marathon.
3. The control system has high precision: the diesel generator set control system produced by our company uses the LCD screen controller,Such as: ① deep sea controller (DSE) ② smartgen controller (smartgen) has the characteristics of high integration and high management accuracy.
4. Huide can produce more than 10,000 generator sets of various types annually, and the unit power ranges from 2 to 8700kW
5. It is currently widely used in national defense, communications, and petroleum. , medical, plateau, railway, field rescue, agriculture and animal husbandry and other fields
6. Our power system products,generator-drive engines, battery storage systems and integrated power systems that combine generator sets, paralleling controls and switchgear technologies, all connected to our industry-leading digital solutions for complete power system control.
| Gen-set Specifications | |||
| Gen-set Model | HD-(250-500)GF | Rated Frequency | 50Hz/60Hz |
| Rated Power | 250-500kWe | Rated Speed | 1500rpm/1800rpm |
| Standby Power | 275-550kWe | Rated Current | 450-900A(400V) |
| Rated Voltage | 400/440V | Weight | 2500-4200kg |
| Fuel Consumption(Rated) | 193-224g/kW•h | Outline Dimension(L×W×H) | 2900×1100×1700 |
| Engine Technical Datasheet | |||
| Engine Series | TAD135/TAD165 | Brand | VOLVO |
| Rated Power | 279-547kW | Number of Cylinders | 6 |
| Displacement | 12.78-16.12 Liters | Governor | ECU |
| Starting method | DC24V | Lubricant Capacity | 36-48L |
| Alternator Technical Datasheet | |||
| Rated Power | 250-500kWe | Brand | Stanford |
| Type | 3phase 4wire | Protection Grade | IP23 |
| Voltage regulation | AVR | Excitation | brushless PMG |
| Insulation Grade | H | ||
| Control system Technical Datasheet |
1,Multi-interface display unit work and alarm state, intuitively clear, LCD displays the parameters of diesel engines. 2,Microcomputer can be set on the control panel input, output, alarm, delay and other 3,parameters.Maintenance, manual, automatic and other modes of operation. 1,Engine Data: Speed, Oil Pressure, Water Temperature, Battery Volt, Running TimingAlternator 2,Data: Gen-set/Mains Frequency, Gen-set/Mains 3-Phase Volt(L-L,L-N) ,Current, kVA,kW,PF,kVAR,kWh,kVAh,kVARh 1,Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt,Low water level,Three failed to start alarm 2,Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit |
