560kW Cummins Genset Generator Base Type Oil Tank Shipping Container Generator
Features Gallery Product Description Request A Quote
Style: Container
Rated Power: 687.5kVA
Rated Frequenc: 60HZ/50HZ
Rated Speed: 1800rpm
Rated Voltage: 440V Customizable 400V,690V,10.5kV
Starting Method: DC24V
Alternator: Stamford,Marathon
Engine: Cummins
High Light:

560kW Cummins Genset Generator


Oil Tank Shipping Container Generator

Basic Infomation
Place of Origin: Taizhou City,Jiangsu Province,China
Brand Name: Cummins
Certification: ISO9001
Model Number: HD-550GF
Payment & Shipping Terms
Packaging Details: Rainproof packaging
Delivery Time: 10-25 days
Payment Terms: LC,TTB
Supply Ability: hundred
Product Description

 Rated Power 687.5kVA Cummins Diesel Generator Set Base Type Oil Tank Land Power Station
1.  Reliable power quality: The diesel generator set produced by our company uses the world-renowned brand Cummins engine (CUMMINS). Introduction to Cummins Engine: Cummins Engine Company was formally established in the United States in 1919. After more than 100 years of accumulation, Cummins is the world's leading manufacturer of power equipment, with a power range of 31~3500 horsepower, widely used in construction machinery, mining machinery, agricultural machinery , ships, oil and gas fields.
2.  Reliable generator quality: The diesel generators produced by our company are equipped with generators with reliable quality and high market holdings, such as ① Stamford generator (STAMFORD) ② Mecc alte generator (mecc alte) ③ Marathon power generation Generators with excellent performance such as marathon.
3.  The control system has high precision: the diesel generator set control system produced by our company uses the LCD screen controller,Such as: ① deep sea controller (DSE) ② smartgen controller (smartgen) has the characteristics of high integration and high management accuracy.
4.  Wide power coverage: The power of diesel generator sets produced by our company covers 20-1200kWe, which can meet various electricity needs of users.
5. The main components are from American technology with reliable quality
6. Regardless of the power system architecture required to meet your market or application needs Cummins provides a superior combination of solution design expertise, integrated equipment and communication software as well as ongoing operation and generator maintenance services to help you maintain a resilient operation at your site.
7.  Diesel generator sets are widely used in high-rise office buildings, hotels, hospitals, industrial and mining, rural areas, field operations in mountainous areas, power and lighting for enterprises, institutions, schools or professional households

 Gen-set Specifications
Gen-set Model HD-550GF Rated Frequency 50Hz/60Hz
Rated Power  550kWe/687.5kVA Rated Speed 1500rpm/1800rpm
Standby Power 605kWe/756.25kVA Rated Current 990A(400V)
Rated Voltage 400/440V Weight 5000kg
Fuel Consumption(Rated) 200g/kW•h

Outline Dimension(L×W×H)

 Engine Technical Datasheet
Engine Model KTA19-G8A Brand CCEC Cummins
Rated Power 600kW Number of Cylinders 6
Bore×Stroke 159mm×159mm Governor Electronic control(ECU)
Displacement 19Liters Lubricant Capacity 135L
Starting method DC24V
Alternator Technical Datasheet
Alternator Model S5L1D-G41 Brand Stamford
Rated Power  560kW Protection Grade IP23
Voltage regulation AVR Excitation brushless PMG
Insulation Grade H Type  3phase 4wire
Control system Technical Datasheet

1,Multi-interface display unit work and alarm state, intuitively clear, LCD displays the parameters of diesel engines.

2,Microcomputer can be set on the control panel input, output, alarm, delay and other

3,parameters.Maintenance, manual, automatic and other modes of operation.
Display Data

1,Engine Data: Speed, Oil Pressure, Water Temperature, Battery Volt, Running TimingAlternator

2,Data: Gen-set/Mains Frequency, Gen-set/Mains 3-Phase Volt(L-L,L-N) ,Current, kVA,kW,PF,kVAR,kWh,kVAh,kVARh
Detection and protection function

1,Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt,Low water level,Three failed to start alarm

2,Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit

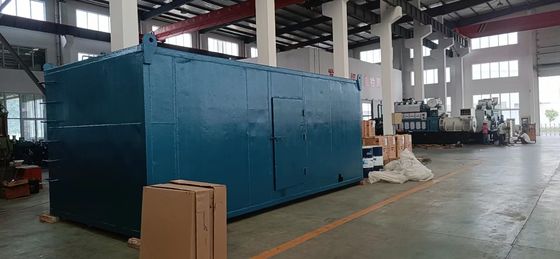

560kW Cummins Genset Generator Base Type Oil Tank Shipping Container Generator 0
560kW Cummins Genset Generator Base Type Oil Tank Shipping Container Generator 1
Factory reserve
560kW Cummins Genset Generator Base Type Oil Tank Shipping Container Generator 2560kW Cummins Genset Generator Base Type Oil Tank Shipping Container Generator 3
