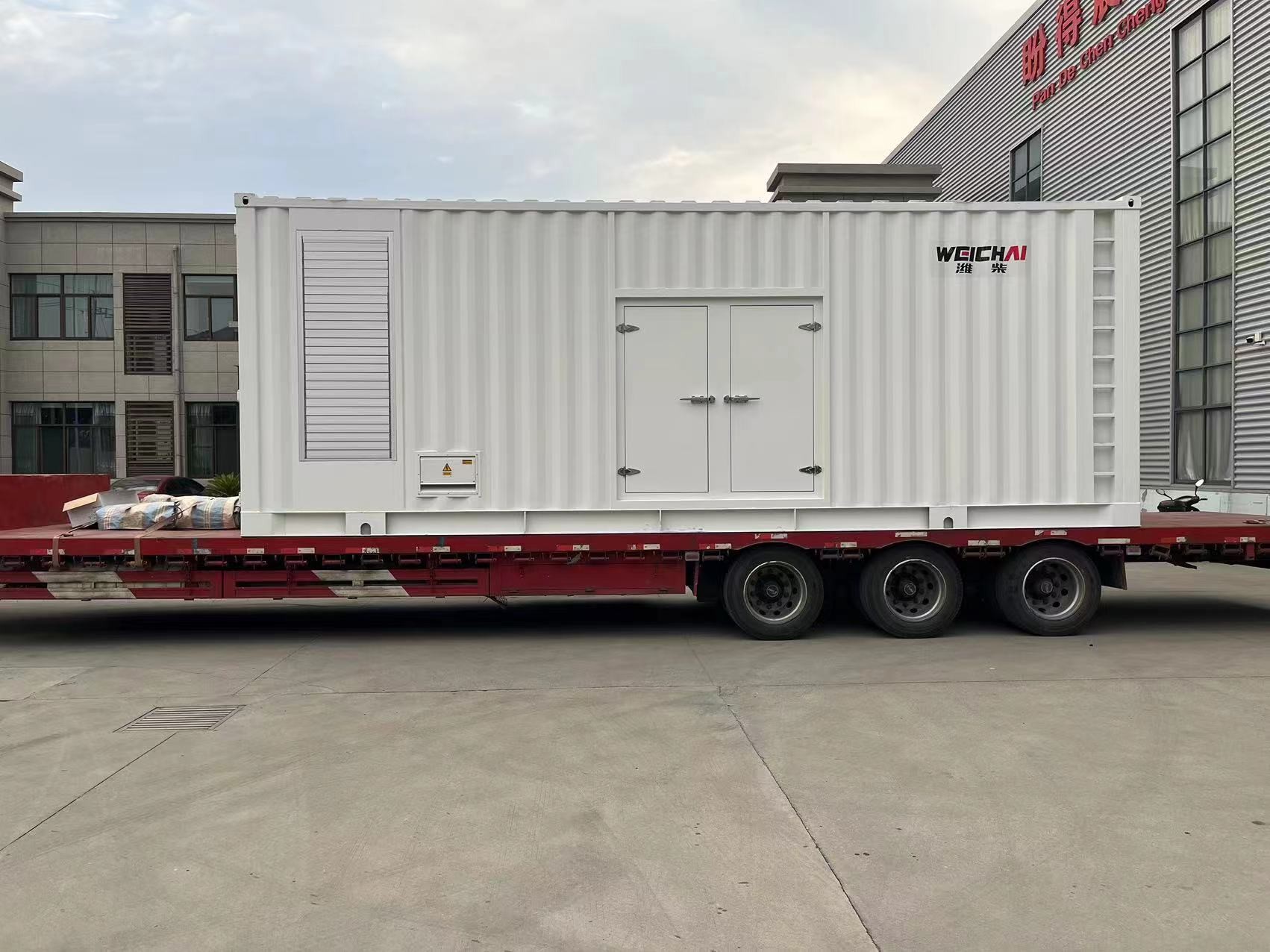

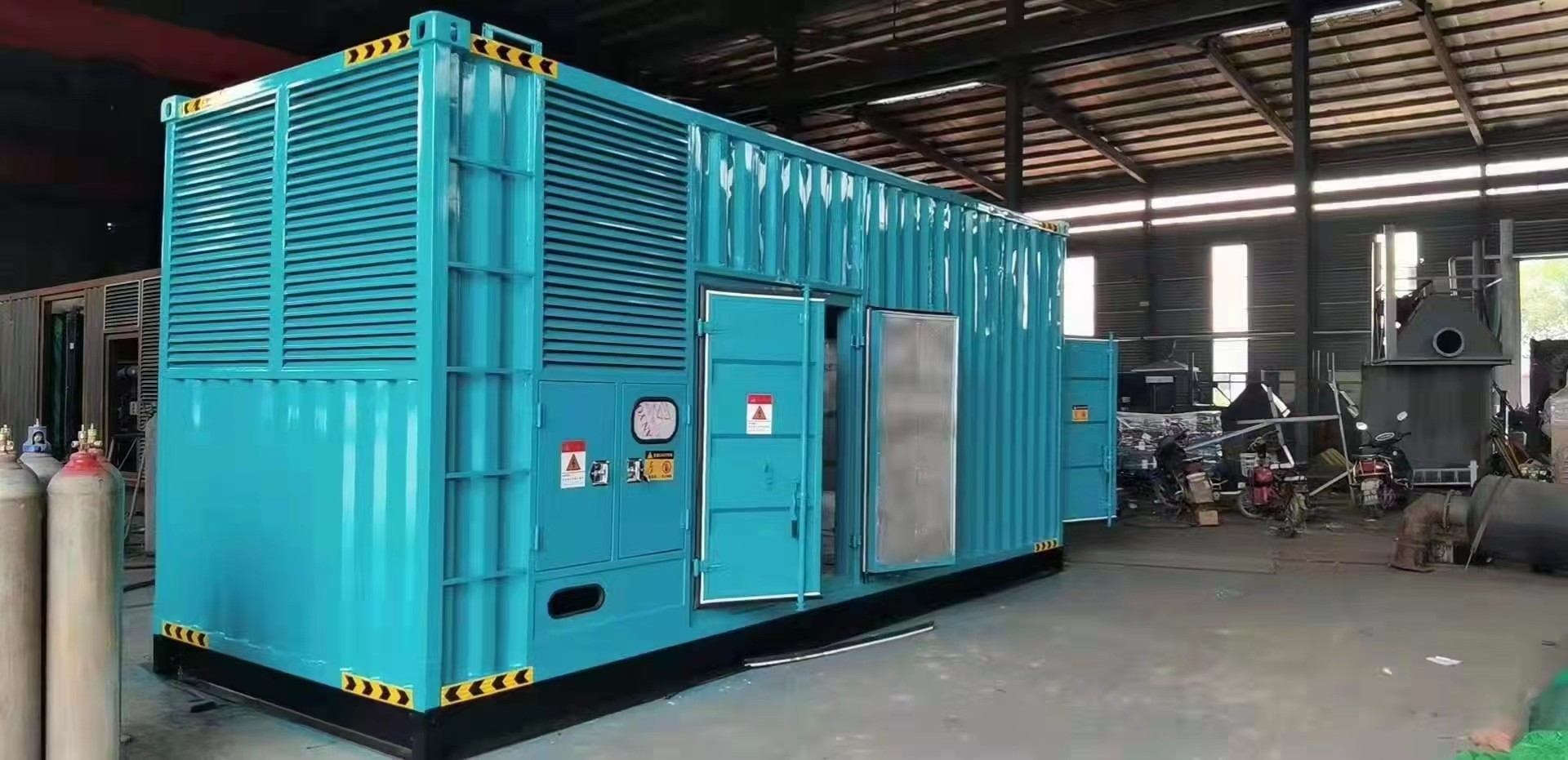

Rated Power 712.5kVA Cummins Diesel Generator Set Base Type Oil Tank Land Power Station
1. Reliable power quality: The diesel generator set produced by our company uses the world-renowned brand Cummins engine (CUMMINS). Introduction to Cummins Engine: Cummins Engine Company was formally established in the United States in 1919. After more than 100 years of accumulation, Cummins is the world's leading manufacturer of power equipment, with a power range of 31~3500 horsepower, widely used in construction machinery, mining machinery, agricultural machinery , ships, oil and gas fields.
2. Large matching coefficient of unit power and long engine life
3. Supporting professional high-temperature radiator
4. Advanced unit integration system, supporting manual mode and automatic mode
5. The unit has low capacity loss and low oil consumption to meet the industrial power demand
6. Super high cost performance,Free solution before purchasing,Existing equipment provides free repair and maintenance services,According to the different needs of customers, we have a team of experts to customize project solutions for you free of charge,Durable, safe and reliable, with a service life of more than 15 years.
7. The overall performance of the unit is reliable: In addition to choosing well-known brand power, brand output generators, and precise controllers, our company also uses well-known brands for other components such as Schneider for circuit breakers and camel for batteries. The quality of the whole machine is reliable, and it is safe and convenient to use.
8. The main components are from American technology with reliable quality
| Gen-set Specifications | |||
| Gen-set Model | HD-570GF | Rated Frequency | 50Hz/60Hz |
| Rated Power | 570kWe/712.5kVA | Rated Speed | 1500rpm/1800rpm |
| Standby Power | 627kWe/783.75kVA | Rated Current | 1026A(400V) |
| Rated Voltage | 400/440V | Weight | 6800kg |
| Fuel Consumption(Rated) | 207g/kW•h |
Outline Dimension(L×W×H) |
4300×1750×2380mm |
| Engine Technical Datasheet | |||
| Engine Model | KTA38-G1 | Brand | CCEC Cummins |
| Rated Power | 634kW | Number of Cylinders | 12 |
| Bore×Stroke | 159mm×159mm | Governor | Electronic |
| Displacement | 38Liters | Lubricant Capacity | 135L |
| Starting method | DC24V | ||
| Alternator Technical Datasheet | |||
| Alternator Model | S5L1D-H41 | Brand | Stamford |
| Rated Power | 600kW | Protection Grade | IP23 |
| Voltage regulation | AVR | Excitation | brushless PMG |
| Insulation Grade | H | Type | 3phase 4wire |
| Control system Technical Datasheet |
|
1,Multi-interface display unit work and alarm state, intuitively clear, LCD displays the parameters of diesel engines. 2,Microcomputer can be set on the control panel input, output, alarm, delay and other 3,parameters.Maintenance, manual, automatic and other modes of operation. 1,Engine Data: Speed, Oil Pressure, Water Temperature, Battery Volt, Running TimingAlternator 2,Data: Gen-set/Mains Frequency, Gen-set/Mains 3-Phase Volt(L-L,L-N) ,Current, kVA,kW,PF,kVAR,kWh,kVAh,kVARh 1,Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt,Low water level,Three failed to start alarm 2,Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit |
