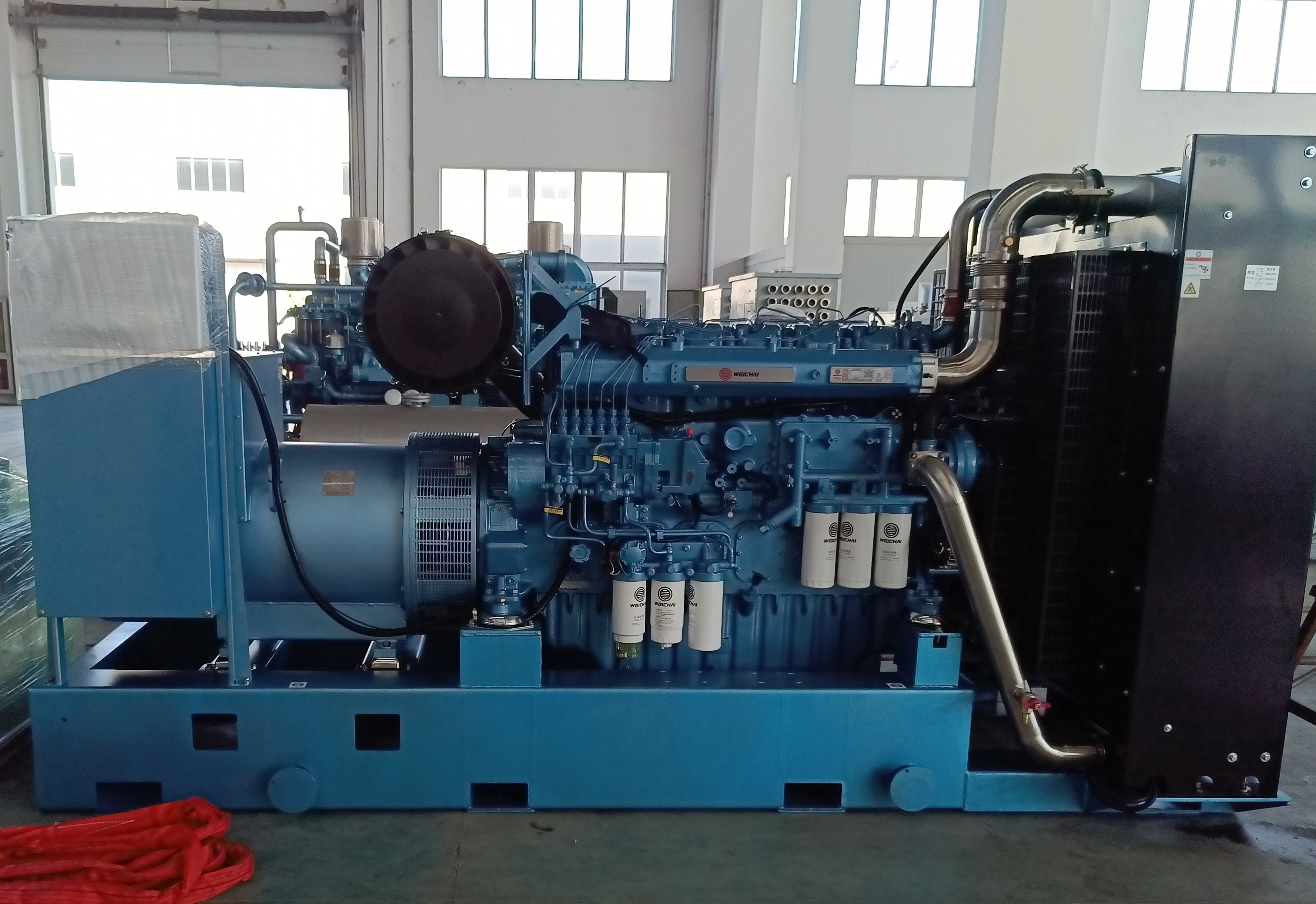

Rated Power 1000kWe Weichai Diesel Generator Set Base Type Oil Tank Land Power Station
1. Reliable power quality: The diesel generator set produced by our company is a well-known Chinese brand Weichai engine (WEICHAI). Introduction to Weichai Engine: Weichai Company was formally established in 1946. Weichai is the leader of domestic engines in China, with a power range of 20-3600 horsepower, widely used in construction machinery, mining machinery, agricultural machinery, ships, and oil and gas fields.
2. Reliable generator quality: The diesel generators produced by our company are equipped with generators with reliable quality and high market holdings, such as ① Stamford generator (STAMFORD) ② Mecc alte generator (mecc alte) ③ Marathon power generation Generators with excellent performance such as marathon.
3. The control system has high precision: the diesel generator set control system produced by our company uses the LCD screen controller,
Such as: ① deep sea controller (DSE) ② smartgen controller (smartgen) has the characteristics of high integration and high management accuracy.
4. Wide power coverage: The power of diesel generator sets produced by our company covers 20-1200kWe, which can meet various electricity needs of users.
5. The overall performance of the unit is reliable: In addition to choosing well-known brand power, brand output generators, and precise controllers, our company also uses well-known brands for other components such as Schneider for circuit breakers and camel for batteries. The quality of the whole machine is reliable, and it is safe and convenient to use.
6. Powerful manufacturers create gold medal quality.
Diesel generator sets are widely used in high-rise office buildings, hotels, hospitals, industrial and mining, rural areas, field operations in mountainous areas, power and lighting for enterprises, institutions, schools or professional households.
The company will provide you with all-round services with the service tenet of "customer first, service first".
| Gen-set Specifications | |||
| Gen-set Model | HD-1000GF | Rated Frequency | 50Hz/60Hz |
| Rated Power | 1000kWe/1250kVA | Rated Speed | 1500rpm/1800rpm |
| Standby Power | 1100kWe/1375kVA | Rated Current | 1800A |
| Rated Voltage | 400/440V | Weight | 6200kg |
| Fuel Consumption(Rated) | 208g/kW•h |
Outline Dimension(L×W×H) |
4900×2300×2500mm |
| Engine Technical Datasheet | |||
| Engine Model | 12M33D1210E200 | Brand | Baudouin |
| Rated Power | 1100kW | Number of Cylinders | 12 |
| Bore×Stroke | 150mm×185mm | Governor | Electronic |
| Displacement | 39.2Liters | Lubricant Capacity | 146L |
| Starting method | DC24V | ||
| Alternator Technical Datasheet | |||
| Alternator Model | S6L1D-G41 | Brand | Stanford |
| Rated Power | 1008kW | Protection Grade | IP23 |
| Voltage regulation | AVR | Excitation | brushless PMG |
| Insulation Grade | H | Type | 3phase 4wire |
| Control system Technical Datasheet |
|
1,Multi-interface display unit work and alarm state, intuitively clear, LCD displays the parameters of diesel engines. 2,Microcomputer can be set on the control panel input, output, alarm, delay and other 3,parameters.Maintenance, manual, automatic and other modes of operation. 1,Engine Data: Speed, Oil Pressure, Water Temperature, Battery Volt, Running TimingAlternator 2,Data: Gen-set/Mains Frequency, Gen-set/Mains 3-Phase Volt(L-L,L-N) ,Current, kVA,kW,PF,kVAR,kWh,kVAh,kVARh 1,Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt,Low water level,Three failed to start alarm 2,Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit |
